Threading Machine F114

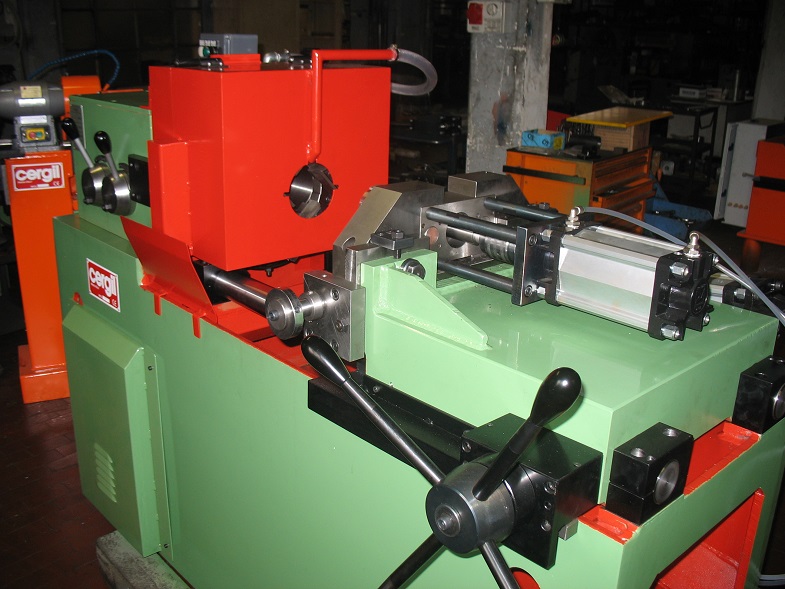

Threading- Machine-F114-picture-1
Threading Machine F114 Picture 2
Threading Machine F114Threading- Machine-F114-picture-1Threading Machine F114 Picture 2

Main Features

Engine power: 7,5 kW.

Torque on the spidle: 2132 Nm.

Diam. of the closing clamps: from Ø33 to Ø114.

Description Threading Machines F114

It’s a semi-automatic traditional machine, designed for cutting threading with a head with automatic opening at the end of the manufacturing.

It’s a solid machine, designed and optimised for intensive productions with very low production costs.

The pieces to be threaded are fix and the tools turns around the rebar; this enable to produce threading in total safety also on very long pieces, thanks to a powerful self-centering clamp too.

The mobile carriage is installed on ball bearings and is activated by a steering wheel. It guarantees a simple use and a considerable production comfort to the operator.

The opening and closing of the clamp and of the threading head are activated by a pneumatic cylinder; their control is connected to the threading length to produce.

The control of the threaded length is obtained by a pneumatic stop inside the spindle.

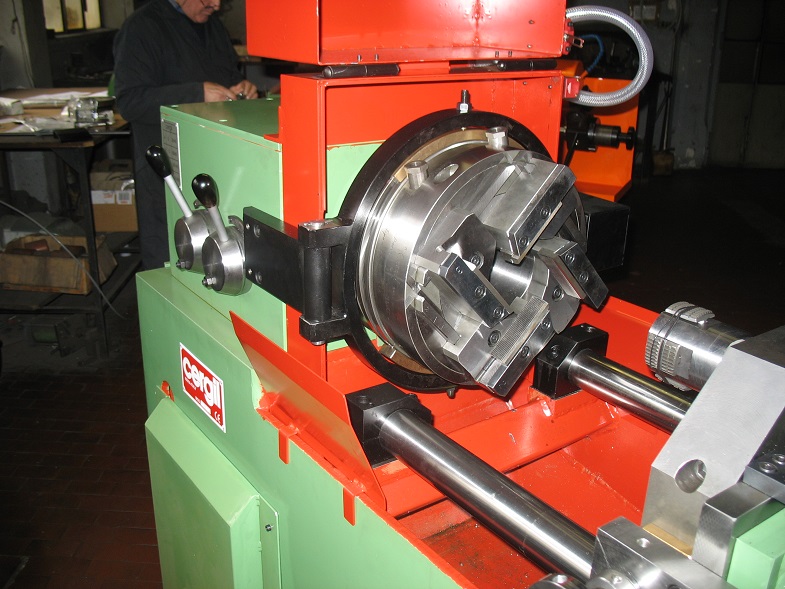

Threading Machine F114 Head

Operation Threading Machines F114

  • Self-centering and pneumatic clamping – maximum clamping force of 2 tons. Opening and closing of the clamp. Related to the position of the cart. 2 sets of V-shape clamping jaws. Maximum opening stroke of 24 mm.
  • Adjusting the thread length by a pneumatic abutment – internal to the spindle.
  • 5.6’’ control screen to set up the spindle speed according to the cutting parameters, diameter and thread pitch.
  • Easy mounting and set up of the chasers.
  • Working position on the right or left of the machine (to be defined upon order).
  • Resharpenable chasers.
  • Automatic watering.
  • Motor 7 KW and 6 poles

ARE YOU INTERESTED IN OUR PRODUCTS?

Strenghts of Threading Machines F114

Robustness

They are very resistant machines, designed and adapted to large industrial productions.

Simplicity

The machine is user-friendly and its use does not require special skills by the operator.

Cost Optimization

The possibility to re-sharpen the cutting tools ensures a reduction in production costs.

Versatility

The machine can make any type of thread, cylindrical or conical, right or left, on any type of steel (including ribbed bars), stainless steel, aluminium, bronze, plastic.
